Cut-Off

Cut-Off

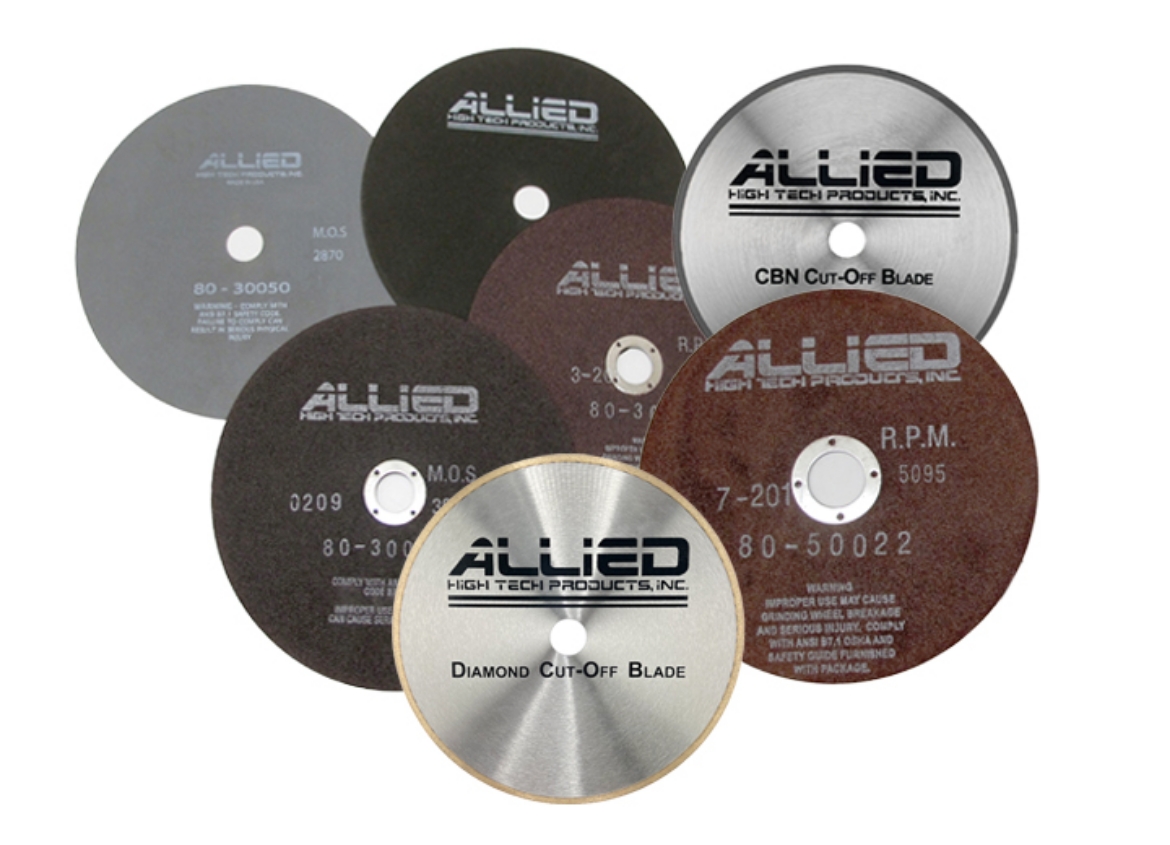

These blades are specially engineered for laboratory sectioning. Aluminum oxide (Al2O3), silicon carbide (SiC), diamond and cubic boron nitride (CBN) abrasives are offered in various bond types for sectioning a wide variety of materials. Choosing the right blade for the right material is crucial in reducing thermal and structural deformation.

Protective metal arbor inserts are molded into resin bonded blades. Blade arbor holes fit both 32 mm and 1.25" spindle arbors. All blades are precision ground to slightly less than the stated diameter to universally fit all makes and models of cutting machines. Blotters are supplied to shield vibration from the metal flanges and help protect the blade from breaking during use. Blades designated with the letter "P" feature a special textured pattern and those with a letter "R" are fiber reinforced.

Mineral - Aluminum oxide is recommended for cutting ferrous metal alloys and silicon carbide is recommended for non-ferrous metal alloys. Diamond is best for hard, non-metal alloys. CBN is best for tool & die steels and other very hard/tough ferrous metal alloys.

Diameter - Select the blade diameter most appropriate for the saw, sample type and size.

Bond - Metal Bond blades provide longer life and durability than resin bond, but result in a coarser surface finish. Resin Bond blades cut cooler with less friction and minimal odor. Rubber Bond blades are available in thinner options and are ideal for environments where durability is desired.





Use the drop-down menus to refine your product search.

Scroll down to see available options.

Availability:
Item Number: Cut-Off
Attribute of Mineral
Attribute of Diameter
Attribute of Bond

More information

These blades are specially engineered for laboratory sectioning. Aluminum oxide (Al2O3), silicon carbide (SiC), diamond and cubic boron nitride (CBN) abrasives are offered in various bond types for sectioning a wide variety of materials. Choosing the right blade for the right material is crucial in reducing thermal and structural deformation.

Protective metal arbor inserts are molded into resin bonded blades. Blade arbor holes fit both 32 mm and 1.25" spindle arbors. All blades are precision ground to slightly less than the stated diameter to universally fit all makes and models of cutting machines. Blotters are supplied to shield vibration from the metal flanges and help protect the blade from breaking during use. Blades designated with the letter "P" feature a special textured pattern and those with a letter "R"  are fiber reinforced.

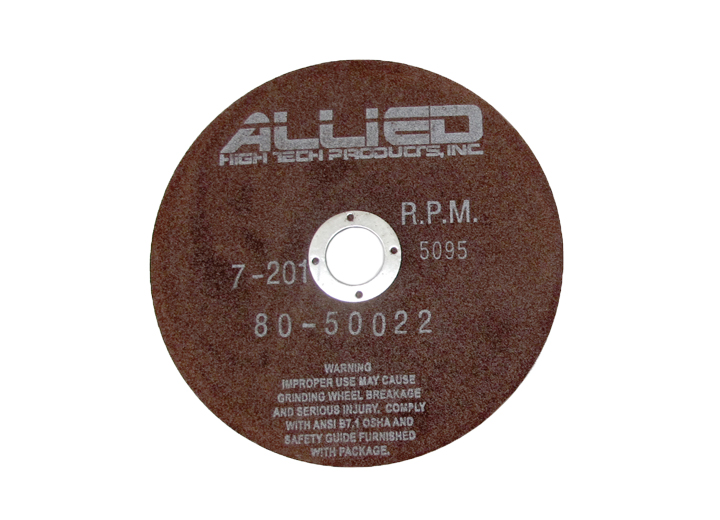

Resin Bond Blades cut cooler with less resistance and friction and do not emit a burned rubber odor as with the rubber bonded blades.
Rubber Bond Blades are thinner and ideal for production environments where durability and long life are desired.

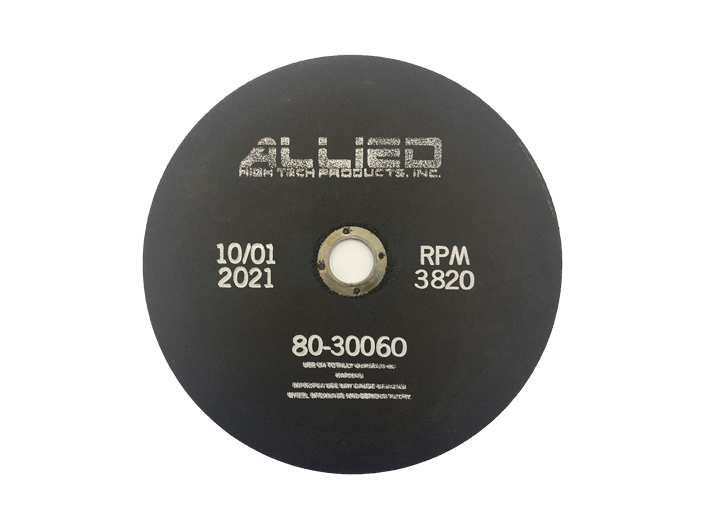

Rubber/resin Bond Blades offer both durability and cooler cutting characteristics.

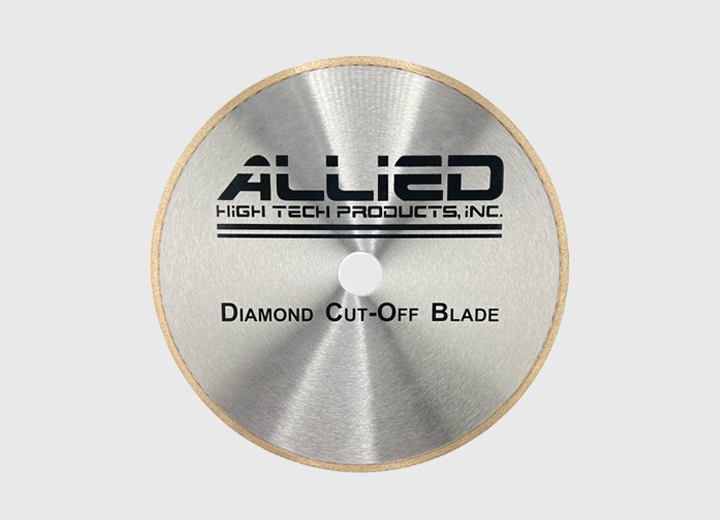

Metal bonded Blades (diamond) provide longer blade life and durability than resin bond blades, for less critical surface finish requirements.



Send us a message
*
*
*
*

These blades are specially engineered for laboratory sectioning. Aluminum oxide (Al2O3), silicon carbide (SiC), diamond and cubic boron nitride (CBN) abrasives are offered in various bond types for sectioning a wide variety of materials. Choosing the right blade for the right material is crucial in reducing thermal and structural deformation.

Protective metal arbor inserts are molded into resin bonded blades. Blade arbor holes fit both 32 mm and 1.25" spindle arbors. All blades are precision ground to slightly less than the stated diameter to universally fit all makes and models of cutting machines. Blotters are supplied to shield vibration from the metal flanges and help protect the blade from breaking during use. Blades designated with the letter "P" feature a special textured pattern and those with a letter "R"  are fiber reinforced.



Resin Bond Blades cut cooler with less resistance and friction and do not emit a burned rubber odor as with the rubber bonded blades.
Rubber Bond Blades are thinner and ideal for production environments where durability and long life are desired.
Rubber/resin Bond Blades offer both durability and cooler cutting characteristics.
Metal bonded Blades (diamond) provide longer blade life and durability than resin bond blades, for less critical surface finish requirements.



Product tags
Related products
Parent Sectioning Dressing Stick.jpg

Dressing Stick

Silicon carbide - These sticks are used to remove accumulated material from plated and metal bonded blades.

Aluminum Oxide - Used to remove accumulated material from the diamond segments to restore grinding performance.



Use the drop-down menus to refine your product search.

Scroll down to see available options.

Parent Sectioning Cutting Fluids.jpg

Cutting Fluids

Cutting fluid enhances blade performance, extends blade life and minimizes material deformation by reducing heat during sectioning. Use Deli-Cut low speed cutting fluid for gravity-fed saws at full strength. Use Maxi-Cut or Lubri-Cut for speeds above 1,000 RPM, diluted 2-5% with water. Lubri-Cut has a low oil content and is easier to clean.



Use the drop-down menus to refine your product search.

Scroll down to see available options.

Parent PowerCut 10x.jpg

PowerCut 10x™

The PowerCut 10x™ is a powerful, reliable cut-off saw designed for low to high volume applications. It accommodates blades up to 10" (250 mm) in diameter, allowing a wide variety of sample shapes and sizes up to 3.75" (95 mm) thick to be sectioned.

Versatile: Dual T-slot tables allow front-to-back and side-to-side vise/clamp positioning. A side port allows cutting of longer samples such as bar stock.

Durable: Engineered and constructed using precision machined, hard-anodized aluminum and stainless steel components to provide maximum longevity. Front controls and rear electronics are isolated from the wet cutting chamber.

Easy to Use: Straightforward controls and user-friendly functions allow quick, easy, repeatable operation.

Safe: The polycarbonate viewing window is engineered to withstand blade breakage should it occur. A cover shut-off switch and emergency stop provide added operator protection.
