Portable

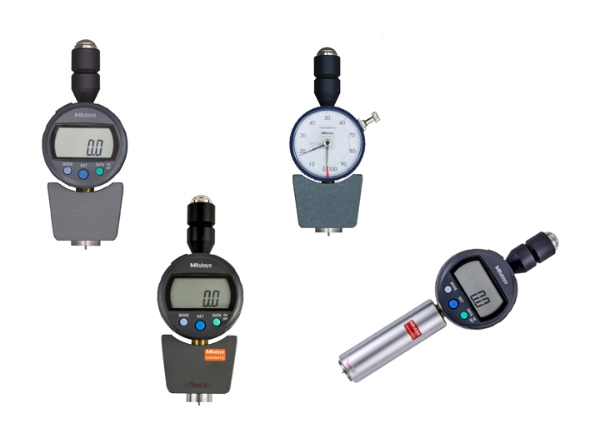

Durometers are suitable for testing natural rubber, neoprene, polyesters, P.V.C., leather, thiokol, nitril, rubber, wax, vinyl, cellulose acetates, glass, polystyrol, and other materials.
Mitutoyo's Durometers are manufactured in accordance with ASTM D 2240, ISO 868, ISO 7619, DIN 53 505, JIS K 6253, and JIS K 7215 specifications.
Mitutoyo's Durometers are manufactured in accordance with ASTM D 2240, ISO 868, ISO 7619, DIN 53 505, JIS K 6253, and JIS K 7215 specifications.
Units are available in both Shore A and Shore D scales, and will test a wide variety of applications.
The analog durometer is provided with a peak retaining hand for error-free reading.
The digital durometer is provided with data hold function, and permits the operator to make an error free reading on the clear LCD screen. Data output function

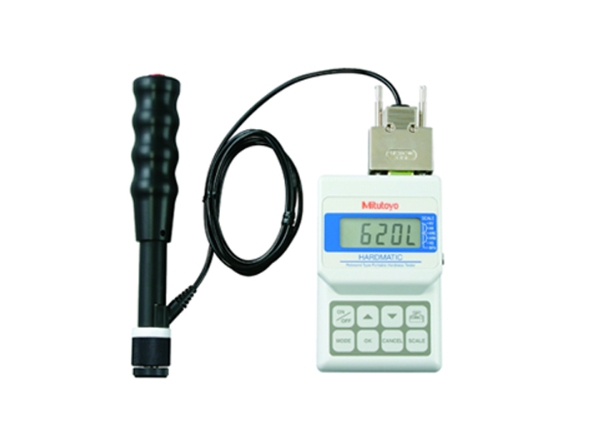

The “HARDMATIC” HH–411 is a light-weight portable hardness testing instrument for metal workpieces. It works on the rebound hardness principle (standardized according to ASTM A 956). Measurement is conducted with hardness value L (Leeb-value), however, conversion to any desired hardness scale can be performed. In addition, the display automatically shows OK/NG with the tolerance function set and selected. Memory function for 1800 measured values. Automatic measuring direction angle-compensation of the given angle.
HH-411 Leeb
The “HARDMATIC” HH–411 is a light-weight portable hardness testing instrument for metal workpieces. It works on the rebound hardness principle (standardized according to ASTM A 956). Measurement is conducted with hardness value L (Leeb-value), however, conversion to any desired hardness scale can be performed. In addition, the display automatically shows OK/NG with the tolerance function set and selected. Memory function for 1800 measured values. Automatic measuring direction angle-compensation of the given angle.
