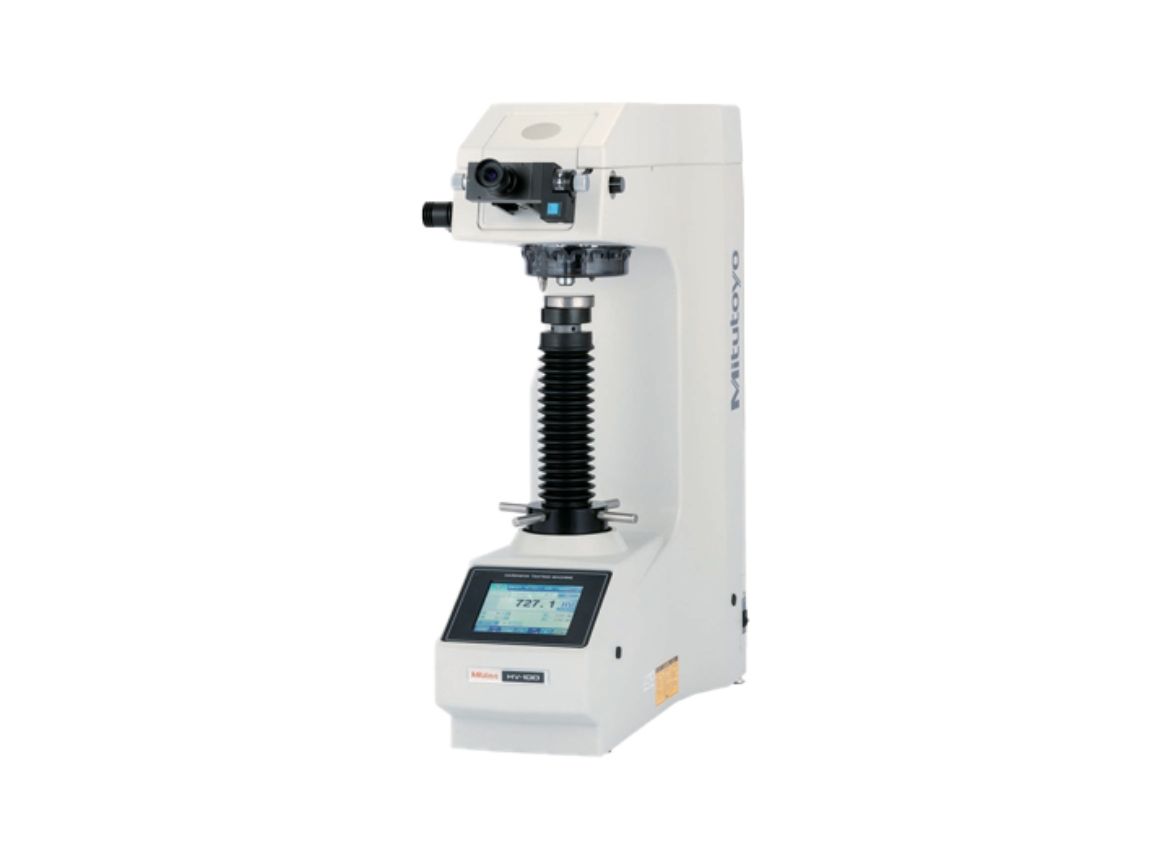

HM-210/220 Macro Vickers

5.7-inch color touchscreen display provides high visibility and allows the unit to operate easier.

Feature motorized force selection from 1-50 kgf or .3 to 30 kgf A dual-line filar eyepiece combined with a color touch-screen LCD to create accurate measurements with the touch of a button.

The motorized turret can accommodate up to 3 long working distance objective lenses for an even wider range of materials and a wide variety of anvils and x-y stages are also available Digital output streams measurement data into software or spreadsheets LED illumination provides better visibility of specimen without producing heat.

The Type B/D models feature a high-resolution 3 mega-pixel camera that produces crisp images that are automatically measured in less than three seconds. The Mitutoyo AVPAK is the dedicated image analysis software which offers automated indentation reading with excellent automatic edge detection capability, thus eliminating reading variations and visual errors.

Type B hardness testers have computer controls, providing more accurate and repeatable measurements. Type D hardness testers have a motorized X-Y stage with up to 100 mm x 100 mm travel for large samples. Motorized focusing platform on Type D models provide a complete walk away system. Various software functions such as automatic light intensity, simple to use report generator and programming wizards make tedious and repetitive testing requirements more accurate than manual testing and eliminates common operator errors. Each model is available with an optional PC.

Model Comparison Chart/Technical Specifications.
