Products tagged with 'saw'

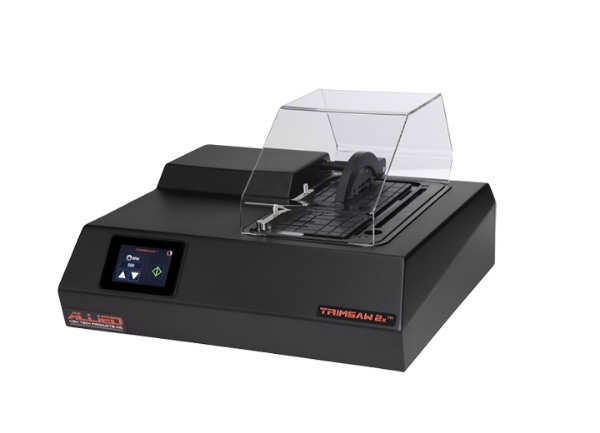

The TrimSaw 2x™ is a manual-feed, variable-speed table saw that is ideal for cutting printed circuit boards, composite/ceramic substrates, electronic devices and other nonmetals. Cutting fluid is drawn from the reservoir by the rotating blade, applied to the sample during sectioning, then channeled back to the reservoir through holes in the cutting platform.

When using a 6" (152 mm) diameter blade, the rim extends 1.6" (41 mm) above the cutting platform, allowing up to 1.5" (38 mm) thick samples to be sectioned. The adjustable rip fence is made of stainless steel and allows measured, guided sectioning through the blade. Optional miter-guide and multipurpose fixtures slide in the table slot for more precise cutting requirements or when handheld sectioning cannot be tolerated.

The TechCut 4x™ is a precision low speed saw designed to cut small or delicate samples that cannot tolerate increased heat from friction caused by high speed sectioning. A 3.5" color LCD touchscreen is used to control all functions with an intuitive interface optimized for efficiency. The pivoting cutting arm has adjustable weights to apply or counterbalance downward force to the sample during sectioning. Cutting fluid is drawn from the reservoir by the blade to cool the sample. With a 3" to 6" blade range, samples up to 2" thick can be sectioned.
