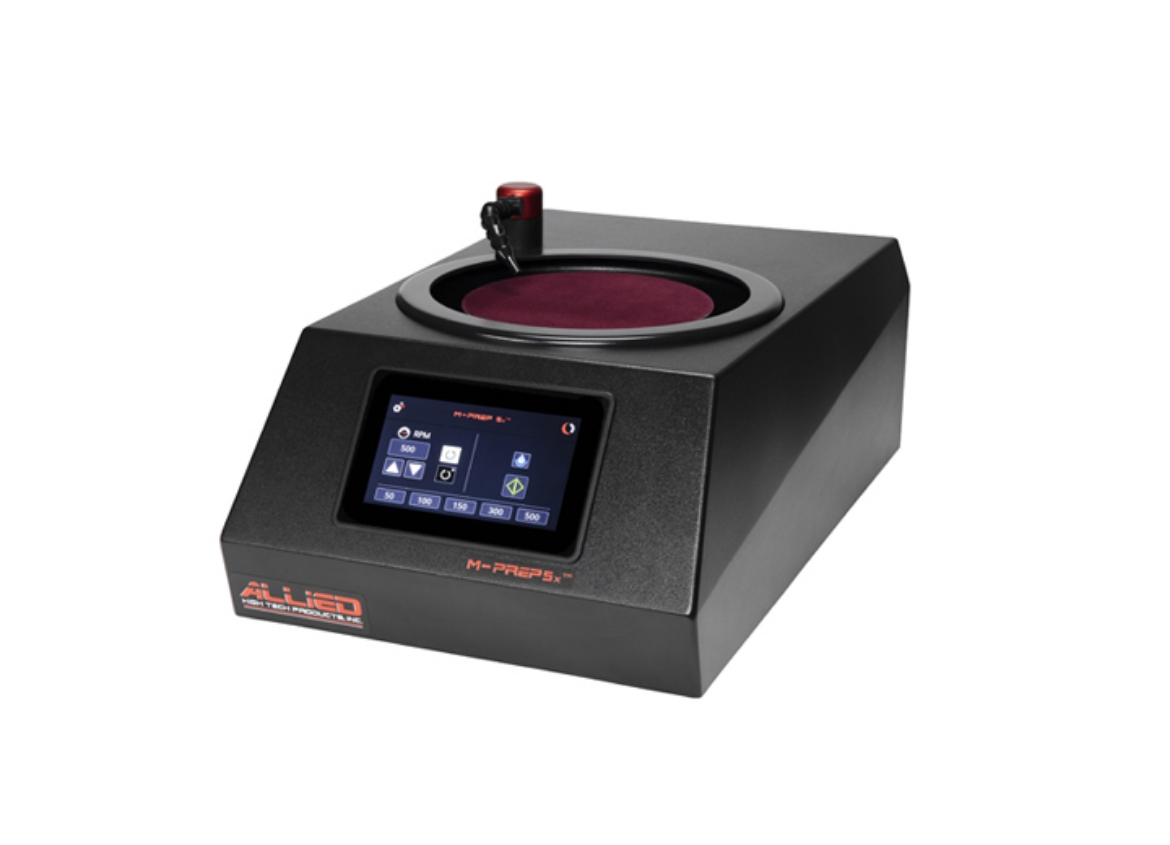

M-Prep 5x™

Parent M-Prep 5x.jpg

M-Prep 5x™

The M-Prep 5x™ grinding/polishing machine is designed for manual sample preparation. The powerful, quiet motor provides constant high-torque output throughout the speed range, in either 10-500 or 20-1,000 RPM configurations. A 7" color LCD touchscreen with keypad entry is used to control all functions with an intuitive interface optimized for efficiency. Five (5) user-defined preset buttons allow quick and easy RPM selections in either clockwise or counterclockwise rotation.

Durable: Engineered and constructed using precision machined hard-anodized aluminum and stainless steel components to provide maximum longevity.

Easy to use: Straightforward controls and user friendly functions for quick, repeatable operation.

Either standard or magnetic 8"/203 mm or 10"/254 mm platens may be used with any plain/adhesive backed or magnetic system disc.

Availability:
Please make a selection
Item Number: M-Prep 5x
Please register or login to obtain a quote

More information

  • Overview
  • Video

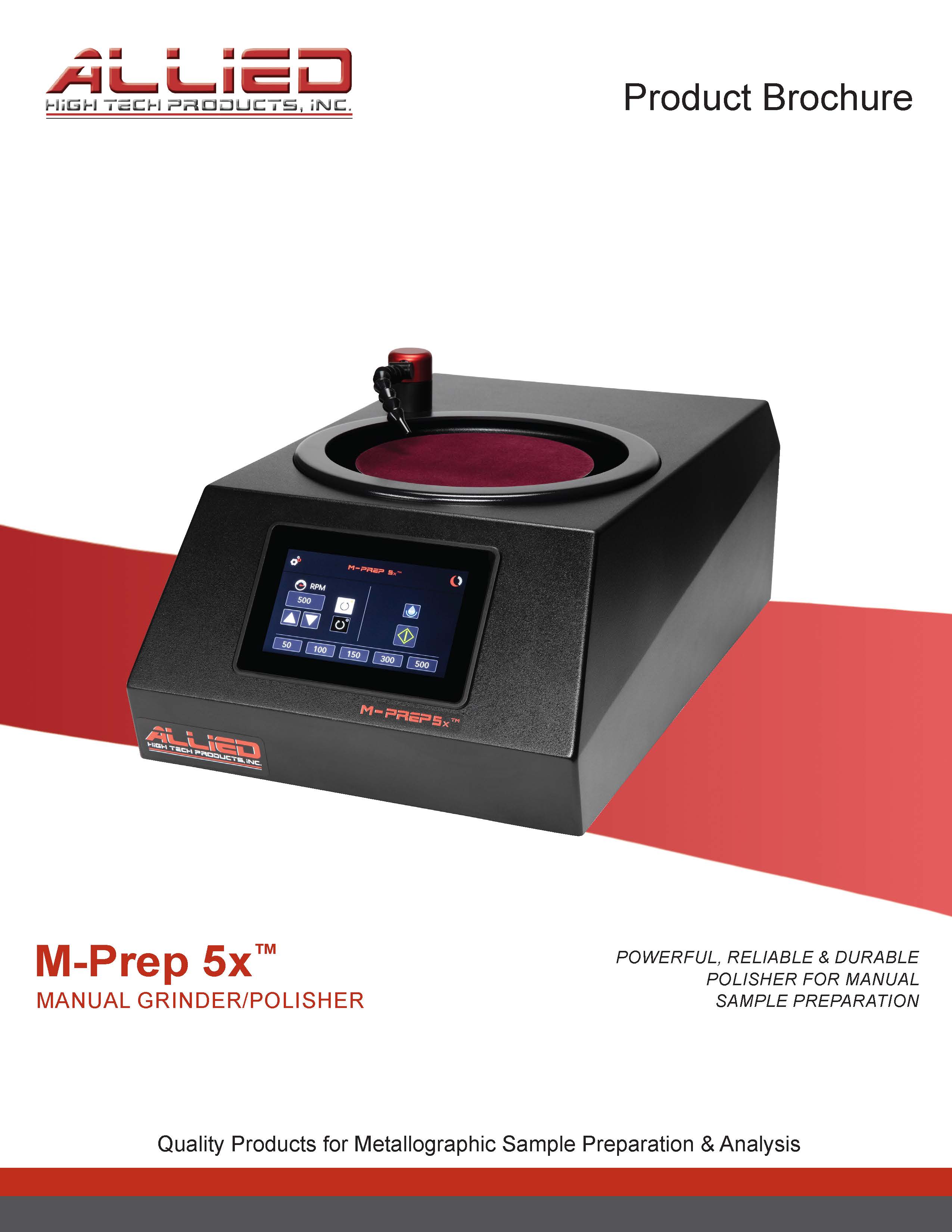

  • Brochure
  • Contact Us

Allied Equipment and Fixtures are Designed and Manufactured by Allied in the U.S.A.

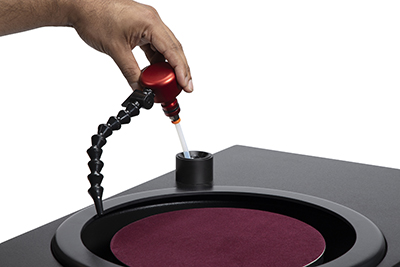

Retractable Coolant Nozzle Allows Quick & Easy Sample & Bowl Cleaning         Intuitive Controls & User Friendly Functions           Quick-Change Platen Design,  Anodized to Resist Wear & Corrosion





FEATURES

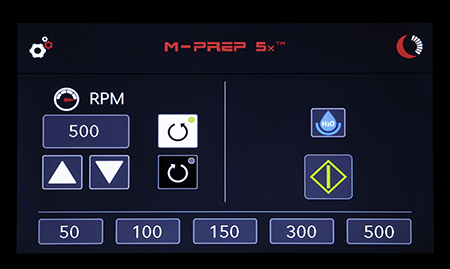

Variable platen speed: either 10-500 or 20-1000 RPM (in increments of 10 RPM) with five (5) adjustable preset buttons   7" color LCD touchscreen with keypad entry to control all functions
Powerful, quiet 0.6 HP (470 W) Brushless DC motor provides constant high-torque output throughout the speed range   Intuitive interface optimized for efficiency and function

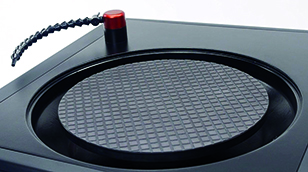

Quick-change platen design, anodized to resist wear and corrosion   Sturdy RIM, aluminum and stainless steel construction
Clockwise/counterclockwise platen rotation   Molded one-piece corrosion and impact resistant cover
Retractable coolant nozzle that allows quick and easy sample/bowl cleaning   Electronic coolant control with adjustable flow control valve
Low profile, tabletop design   Overflow diversion to protect internal components
Dimensions: 15" W x 28" D x 9" H (381 x 711 x 229 mm)   Two (2) year warranty
Weight: 58 lb. (26 kg)   CE Compliant for EU
Designed & manufactured by Allied in the USA



Send us a message
*
*
*
*

Allied Equipment and Fixtures are Designed and Manufactured by Allied in the U.S.A.



Retractable Coolant Nozzle Allows Quick & Easy Sample & Bowl Cleaning         Intuitive Controls & User Friendly Functions           Quick-Change Platen Design,  Anodized to Resist Wear & Corrosion





FEATURES

Variable platen speed: either 10-500 or 20-1000 RPM (in increments of 10 RPM) with five (5) adjustable preset buttons   7" color LCD touchscreen with keypad entry to control all functions
Powerful, quiet 0.6 HP (470 W) Brushless DC motor provides constant high-torque output throughout the speed range   Intuitive interface optimized for efficiency and function
Quick-change platen design, anodized to resist wear and corrosion   Sturdy RIM, aluminum and stainless steel construction
Clockwise/counterclockwise platen rotation   Molded one-piece corrosion and impact resistant cover
Retractable coolant nozzle that allows quick and easy sample/bowl cleaning   Electronic coolant control with adjustable flow control valve
Low profile, tabletop design   Overflow diversion to protect internal components
Dimensions: 15" W x 28" D x 9" H (381 x 711 x 229 mm)   Two (2) year warranty
Weight: 58 lb. (26 kg)   CE Compliant for EU
Designed & manufactured by Allied in the USA


Product tags
  • grinder/polisher (6)
  • ,
  • touchscreen controlled polisher (5)
  • ,
  • grinding/polishing equipment (1)
  • ,
  • manual polisher (4)
  • ,
  • manual sample prep (2)
  • ,
  • durable polisher (2)
  • ,
  • easy to use polisher (2)
  • ,
  • intuitive polisher (1)
  • ,
  • quiet polisher (1)
  • ,
  • quick-change platen (1)
  • ,
  • low profile table-top polisher (1)
  • ,
  • single polisher (2)
Related products
Parent Platens.jpg

Platens

Standard aluminum platens are precision lapped parallel, then hard anodized for maximum wear resistance. They are used with adhesive backed discs, double sided adhesive discs and a combination of non-adhesive discs and paper holding bands.

Magnetic platens combine a standard aluminum platen with a cross-hatched magnetic surface for maximum flatness and adherence. Only one platen is needed throughout the grinding and polishing process, allowing all magnetic system cloths/abrasive discs or ferromagnetic discs to be utilized.

Please register or login to obtain a quote
Parent Grinding Polishing Grinding Abrasives Discs.jpg

Discs

Summary of all discs goes here.





Use the drop-down menus to refine your product search.

Scroll down to see available options.

Please register or login to obtain a quote
Parent Grinding Polishing Polishing Cloths.jpg

Cloths

A wide range of polishing cloths is offered for fine grinding or for coarse, intermediate and final polishing of all materials.

Adhesive-back cloths attach to standard platens, while flexible or rigid discs with ferromagnetic backing secure to magnetic platens.

An explanation of each backing type is provided in the overview tab below, along with detailed information about each type.



Use the drop-down menus to refine your product search.

Please register or login to obtain a quote
Parent Grinding Polishing Polishing Abrasives.jpg

Abrasives

Alumina - Made with 99.9% pure aluminum oxide, these high-purity abrasives are available in powder, suspension and colloidal formulations.

Diamond - Available in either poly or monocrystalline, this premium grade diamond abrasive is available in several carrier options, alcohol, compound, glycol, water; all being water-soluble.

Silica - Available in various particle sizes and formulations, these products are used primarily for final polishing applications to achieve ultra smooth surface finish with minimal material removal rate.

Note: Shipping restrictions apply to some of these products and are considered "DG" by IATA and US DOT, additional charges may apply/be incurred.

Use the drop-down menus to refine your product search.

Please register or login to obtain a quote
