M-Prep 6x™

M-Prep 6x™

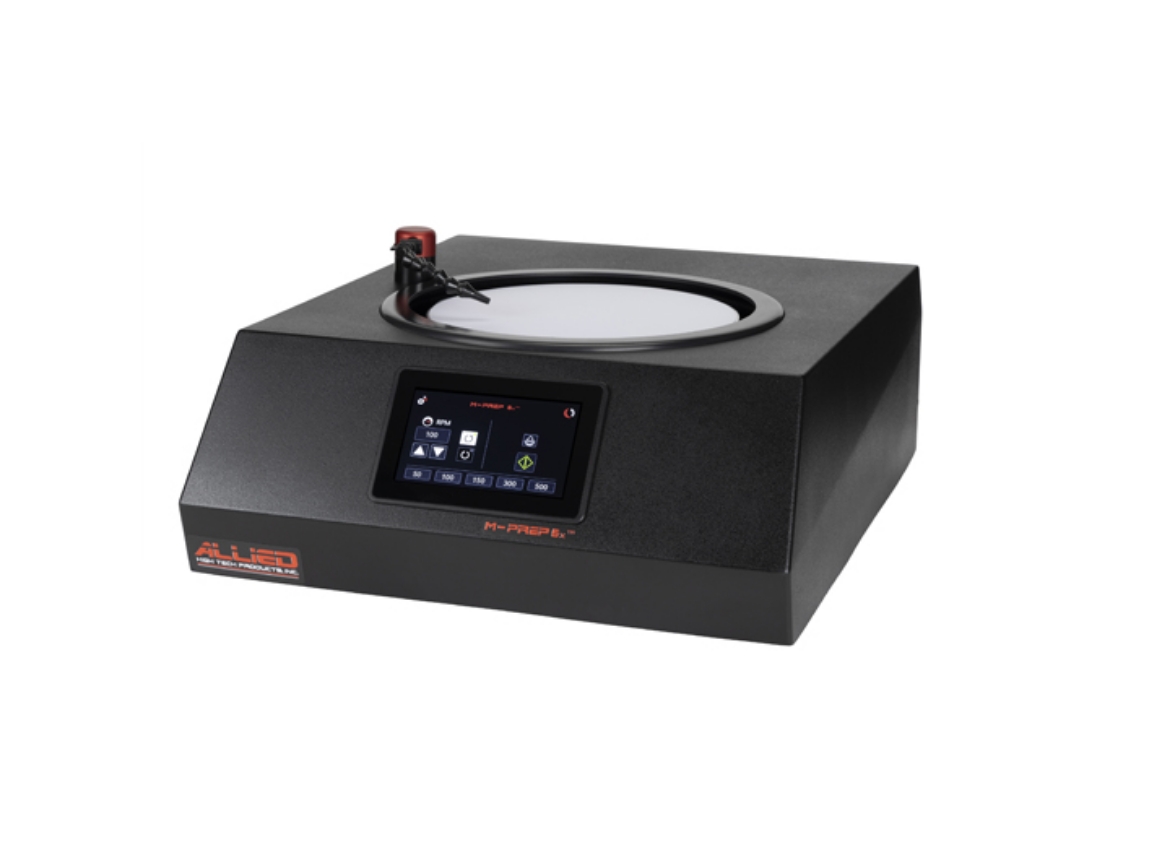

The M-Prep 6x™ grinding/polishing machine is designed for manual sample preparation. The powerful, quiet motor provides constant high-torque output throughout the speed range, in either 10-500 or 20-1,000 RPM configurations. A 7" color LCD touchscreen with keypad entry is used to control all functions with an intuitive interface optimized for efficiency. Five (5) user-defined preset buttons allow quick and easy RPM selections in either clockwise or counterclockwise rotation.

Durable: Engineered and constructed using precision machined hard-anodized aluminum and stainless steel components to provide maximum longevity.

Easy to use: Straightforward controls and user friendly functions for quick, repeatable operation.

Either standard or magnetic 10"/254 mm or 12"/305 mm platens may be used with any plain/adhesive backed or magnetic system disc.

Availability:
Please make a selection
Item Number: M-Prep 6x

More information

Allied Equipment and Fixtures are Designed and Manufactured by Allied in the U.S.A.


Retractable Coolant Nozzle Allows Quick & Easy Sample and Bowl Cleaning Intuitive Controls & User Friendly Functions Quick-Change Platen Design, Anodized to Resist Wear & Corrision





FEATURES

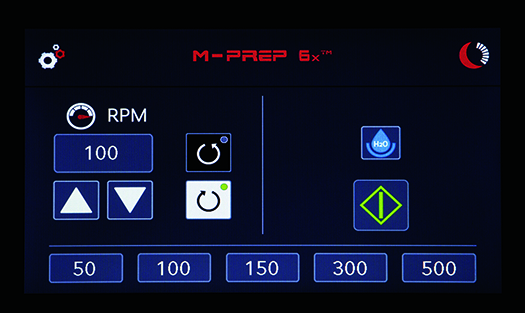

Variable speed with digital display: either 10-500 or 20-990 RPM (10 RPM increments) depending on model   7" color LCD touchscreen with keypad entry to control all functions
Powerful 0.5 HP (375 W) DC motor provides constant high torque output   Sturdy aluminum and stainless steel construction
Quick-change platen design, anodized to resist wear and corrosion   Corrosion/impact resistant cover

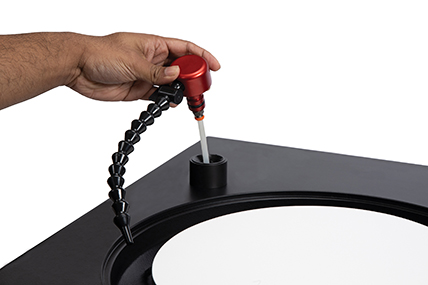

Retractable coolant nozzle allows quick and easy bowl cleaning   Electronic coolant control with adjustable flow control valve
Clockwise/counterclockwise platen rotation   Overflow diversion to protect internal components
Uses either 10" or 12" (254 or 305 mm) platens   Two (2) year warranty
Dimensions: 22" W x 27" D x 10.5" H (560 x 690 x 267 mm)   CE Compliant for EU
Weight: 101 lb. (45 kg)

Designed & manufactured by Allied in the USA

Send us a message
*
*
*
*

Allied Equipment and Fixtures are Designed and Manufactured by Allied in the U.S.A.


Retractable Coolant Nozzle Allows Quick & Easy Sample and Bowl Cleaning Intuitive Controls & User Friendly Functions Quick-Change Platen Design, Anodized to Resist Wear & Corrision





FEATURES

Variable speed with digital display: either 10-500 or 20-990 RPM (10 RPM increments) depending on model   7" color LCD touchscreen with keypad entry to control all functions
Powerful 0.5 HP (375 W) DC motor provides constant high torque output   Sturdy aluminum and stainless steel construction
Quick-change platen design, anodized to resist wear and corrosion   Corrosion/impact resistant cover
Retractable coolant nozzle allows quick and easy bowl cleaning   Electronic coolant control with adjustable flow control valve
Clockwise/counterclockwise platen rotation   Overflow diversion to protect internal components
Uses either 10" or 12" (254 or 305 mm) platens   Two (2) year warranty
Dimensions: 22" W x 27" D x 10.5" H (560 x 690 x 267 mm)   CE Compliant for EU
Weight: 101 lb. (45 kg)

Designed & manufactured by Allied in the USA
Product tags
Related products
Parent Grinding Polishing Polishing Abrasives.jpg

Abrasives

Alumina - Made with 99.9% pure aluminum oxide, these high-purity abrasives are available in powder, suspension and colloidal formulations.

Diamond - Available in either poly or monocrystalline, this premium grade diamond abrasive is available in several carrier options, alcohol, compound, glycol, water; all being water-soluble.

Silica - Available in various particle sizes and formulations, these products are used primarily for final polishing applications to achieve ultra smooth surface finish with minimal material removal rate.

Note: Shipping restrictions apply to some of these products and are considered "DG" by IATA and US DOT, additional charges may apply/be incurred.

Use the drop-down menus to refine your product search.

Parent Grinding Polishing Polishing Cloths.jpg

Cloths

A wide range of polishing cloths is offered for fine grinding or for coarse, intermediate and final polishing of all materials.

Adhesive-back cloths attach to standard platens, while flexible or rigid discs with ferromagnetic backing secure to magnetic platens.

An explanation of each backing type is provided in the overview tab below, along with detailed information about each type.



Use the drop-down menus to refine your product search.

Parent Grinding Polishing Grinding Abrasives Discs.jpg

Discs

Summary of all discs goes here.





Use the drop-down menus to refine your product search.

Scroll down to see available options.

Parent Platens.jpg

Platens

Standard aluminum platens are precision lapped parallel, then hard anodized for maximum wear resistance. They are used with adhesive backed discs, double sided adhesive discs and a combination of non-adhesive discs and paper holding bands.

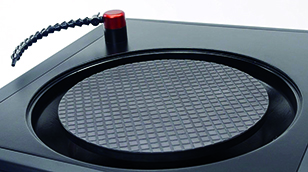

Magnetic platens combine a standard aluminum platen with a cross-hatched magnetic surface for maximum flatness and adherence. Only one platen is needed throughout the grinding and polishing process, allowing all magnetic system cloths/abrasive discs or ferromagnetic discs to be utilized.
