TwinPrep 5x™

TwinPrep 5x™

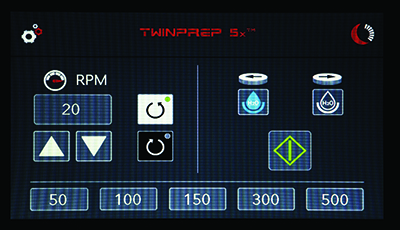

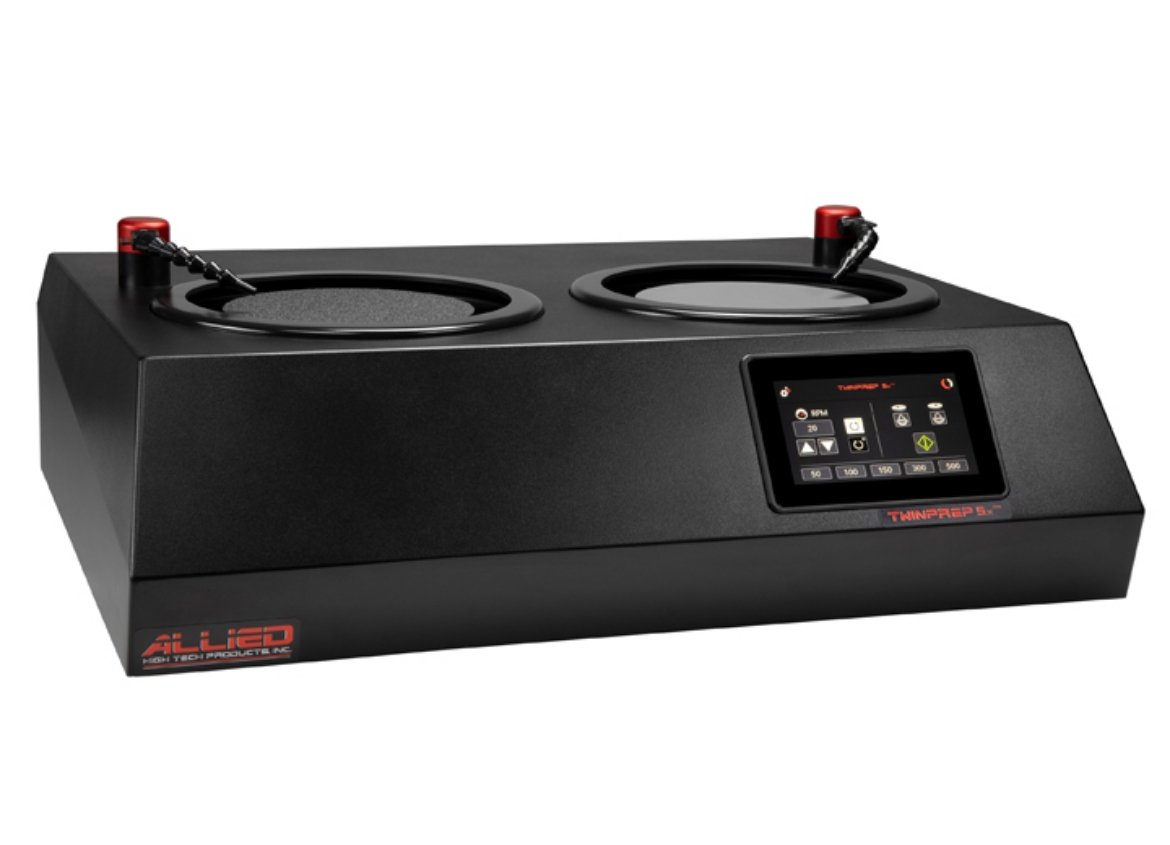

The TwinPrep 5x™ grinding/polishing machine is designed for manual sample preparation. The powerful, quiet motor drives both platens simultaneously and provides constant high-torque output throughout the speed range, in either 10-500 or 20-1,000 RPM configurations. A 7" color LCD touchscreen with keypad entry is used to control all functions with an intuitive interface optimized for efficiency. Five (5) user-defined preset buttons allow quick and easy RPM selections in either clockwise or counterclockwise rotation.

Durable: Engineered and constructed using precision machined hard-anodized aluminum and stainless steel components to provide maximum longevity.

Easy to use: Straightforward controls and user friendly functions for quick, repeatable operation.

Either standard or magnetic 8"/203 mm or 10"/254 mm platens may be used with any plain/adhesive backed or magnetic system disc.

Availability:
Please make a selection
Item Number: TwinPrep 5x

More information

Allied Equipment and Fixtures are Designed and Manufactured by Allied in the U.S.A.

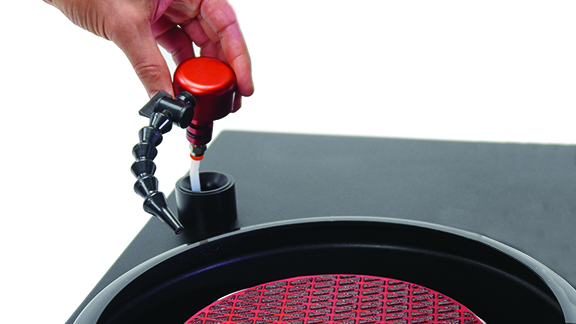

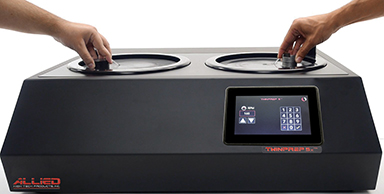

Retractable Coolant Nozzle Allows Quick & Easy Sample & Bowl Cleaning Easy to Use, User-Friendly Functions Dual Manual Sample Preparation



FEATURES

Variable platen speed: either 10-500 RPM or 20-1,000 RPM (10 RPM increments) with five (5) adjustable presets   7" color LCD touchscreen with keypad entry to control all functions
Powerful, quiet 0.6 HP (470 W) Brushless DC motor that provides constant high-torque output throughout the speed range   Intuitive interface optimized for productivity and function
Single motor drives both platens simultaneously   Clockwise/counterclockwise platen rotation
Sturdy RIM, aluminum and stainless steel construction   Molded one-piece corrosion and impact resistant enclosure
Overflow diversion to protect internal components   Quick-change platen design, anodized to resist wear and corrosion
Electronic coolant control with adjustable flow control valves   Retractable coolant nozzles that allow quick and easy sample/bowl cleaning
Low profile, tabletop design   Dimensions: 31" W x 26" D x 9.5" H (780 x 660 x 240 mm)
Weight: 136 lb. (62 kg)   Two (2) year warranty
Designed & manufactured by Allied in the USA   CE Compliant for EU


Send us a message
*
*
*
*

Allied Equipment and Fixtures are Designed and Manufactured by Allied in the U.S.A.


Retractable Coolant Nozzle Allows Quick & Easy Sample & Bowl Cleaning Easy to Use, User-Friendly Functions Dual Manual Sample Preparation



FEATURES

Variable platen speed: either 10-500 RPM or 20-1,000 RPM (10 RPM increments) with five (5) adjustable presets   7" color LCD touchscreen with keypad entry to control all functions
Powerful, quiet 0.6 HP (470 W) Brushless DC motor that provides constant high-torque output throughout the speed range   Intuitive interface optimized for productivity and function
Single motor drives both platens simultaneously   Clockwise/counterclockwise platen rotation
Sturdy RIM, aluminum and stainless steel construction   Molded one-piece corrosion and impact resistant enclosure
Overflow diversion to protect internal components   Quick-change platen design, anodized to resist wear and corrosion
Electronic coolant control with adjustable flow control valves   Retractable coolant nozzles that allow quick and easy sample/bowl cleaning
Low profile, tabletop design   Dimensions: 31" W x 26" D x 9.5" H (780 x 660 x 240 mm)
Weight: 136 lb. (62 kg)   Two (2) year warranty
Designed & manufactured by Allied in the USA   CE Compliant for EU
