E-Prep 4x™ & PH-4i™

E-Prep 4x™ & PH-4i™

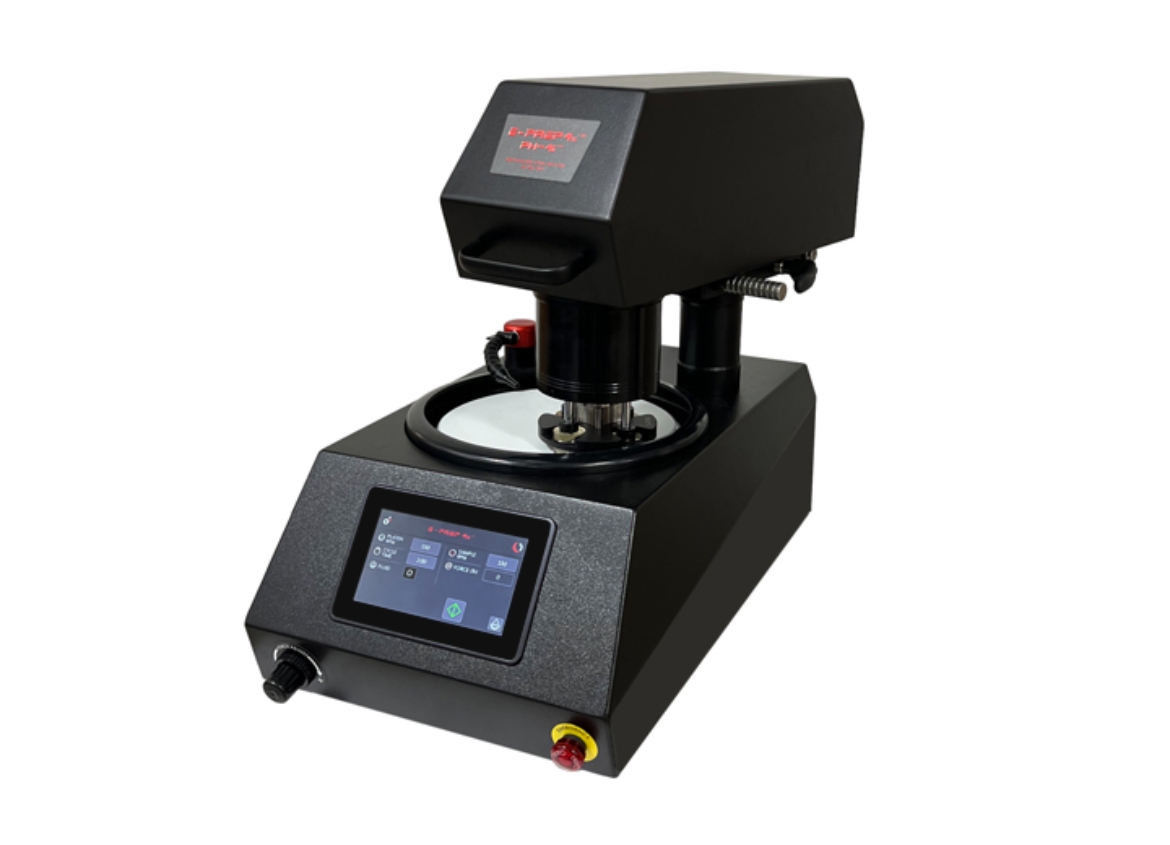

The E-Prep 4x™ grinding and polishing machine, with the PH-4i™ power head, is a simple yet powerful system for semiautomatic operation, ideal for low to medium volume sample preparation requirements. The user-friendly microprocessor-based system makes it easy to enter parameters and operate, and allows quick changes to sample force, cycle time, platen speed and sample speed.

Either standard or magnetic 8"/203 mm or 10"/254 mm platens may be used with any adhesive, non-adhesive or magnetic system disc.

The PH-4i™ power head offers excellent versatility for low to medium volume semiautomatic sample preparation, using individual force mode. The pneumatic-electric system provides controlled sample force and allows between one and four samples up to 2" (51 mm) diameter to be prepared simultaneously. The unique tilt-up design provides easy, unhindered access to the sample holder and platen, and eliminates the need to reposition the head during the preparation procedure.

Availability:
Please make a selection
Item Number: E-Prep4 & PH4i

More information

Allied Equipment and Fixtures are Designed and Manufactured by Allied in the U.S.A

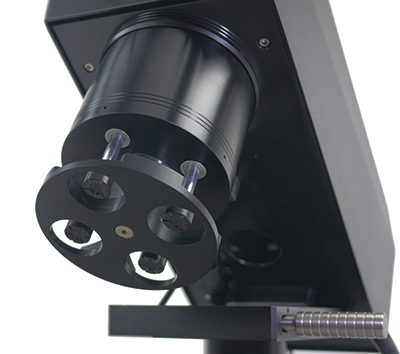

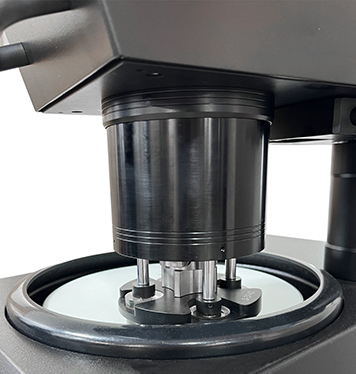

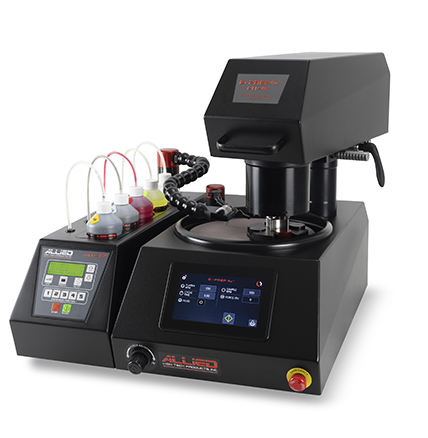

Optional AD-5™ Fluid Dispenser- features five (5) dispensing positions, two of which include high speed pumps with a flush cycle to prevent clogging when using colloidal suspensions. PH-4i™ Individual Force Configuration: four (4) individual pistons apply force to each mount (1.5" mounts shown). Unique Tilt-up Feature Allows Easy Access to Platen & Holder



FEATURES

E-Prep 4x™:

Variable platen speed: 50 - 500 RPM (10 RPM Increments)   Constructed with components precision machined from solid billet aluminum and stainless steel
Variable cycle time: 0:05-10:00 minutes (1 second increments)   Molded one-piece corrosion resistant enclosure with overflow diversion to protect internal components
Powerful, quiet 0.6 HP (470 W) Brushless DC motor that provides constant high torque output throughout the speed range   Quick-change platen design, anodized to resist wear and corrosion
Electronic coolant control with adjustable flow control valve   7" (178 mm) color LCD touchscreen with intuitive interface to control all functions, with adjustable units (lbF/N)
Retractable coolant nozzle allows quick and easy sample/bowl cleaning   Compatible with #5-37XX series sample holders
Emergency shut-off switch   Compatible with #100-40020 Recirculation Filtration System
Two (2) year warranty   Designed & manufactured by Allied in the USA



PH-4i™ Power Head:

Individual force sample preparation of up to 4 mounts   Variable sample rotation speeds: 0-150 RPM (10 RPM Increments) with complementary rotation
Unique tilt-up feature for easy access to platen and holder   Simple push-button attachment and removal of sample holders
Quick-lock system to allow sample holder positioning across platen radius   Complementary rotation
Variable sample force: 0-12 lb. in 1 lb. increments (0-55 N in 1 N increments)   0.33 HP (250 W) power head motor with durable reduction gearbox for constant high torque output
Two (2) year warranty
Designed & manufactured by Allied in the USA

Send us a message
*
*
*
*

Allied Equipment and Fixtures are Designed and Manufactured by Allied in the U.S.A


Optional AD-5™ Fluid Dispenser- features five (5) dispensing positions, two of which include high speed pumps with a flush cycle to prevent clogging when using colloidal suspensions. PH-4i™ Individual Force Configuration: four (4) individual pistons apply force to each mount (1.5" mounts shown). Unique Tilt-up Feature Allows Easy Access to Platen & Holder



FEATURES

E-Prep 4x™:

Variable platen speed: 50 - 500 RPM (10 RPM Increments)   Constructed with components precision machined from solid billet aluminum and stainless steel
Variable cycle time: 0:05-10:00 minutes (1 second increments)   Molded one-piece corrosion resistant enclosure with overflow diversion to protect internal components
Powerful, quiet 0.6 HP (470 W) Brushless DC motor that provides constant high torque output throughout the speed range   Quick-change platen design, anodized to resist wear and corrosion
Electronic coolant control with adjustable flow control valve   7" (178 mm) color LCD touchscreen with intuitive interface to control all functions, with adjustable units (lbF/N)
Retractable coolant nozzle allows quick and easy sample/bowl cleaning   Compatible with #5-37XX series sample holders
Emergency shut-off switch   Compatible with #100-40020 Recirculation Filtration System
Two (2) year warranty   Designed & manufactured by Allied in the USA



PH-4i™ Power Head:

Individual force sample preparation of up to 4 mounts   Variable sample rotation speeds: 0-150 RPM (10 RPM Increments) with complementary rotation
Unique tilt-up feature for easy access to platen and holder   Simple push-button attachment and removal of sample holders
Quick-lock system to allow sample holder positioning across platen radius   Complementary rotation
Variable sample force: 0-12 lb. in 1 lb. increments (0-55 N in 1 N increments)   0.33 HP (250 W) power head motor with durable reduction gearbox for constant high torque output
Two (2) year warranty
Designed & manufactured by Allied in the USA
