MetPrep 4x™ & PH-6™

MetPrep 4x™ & PH-6™

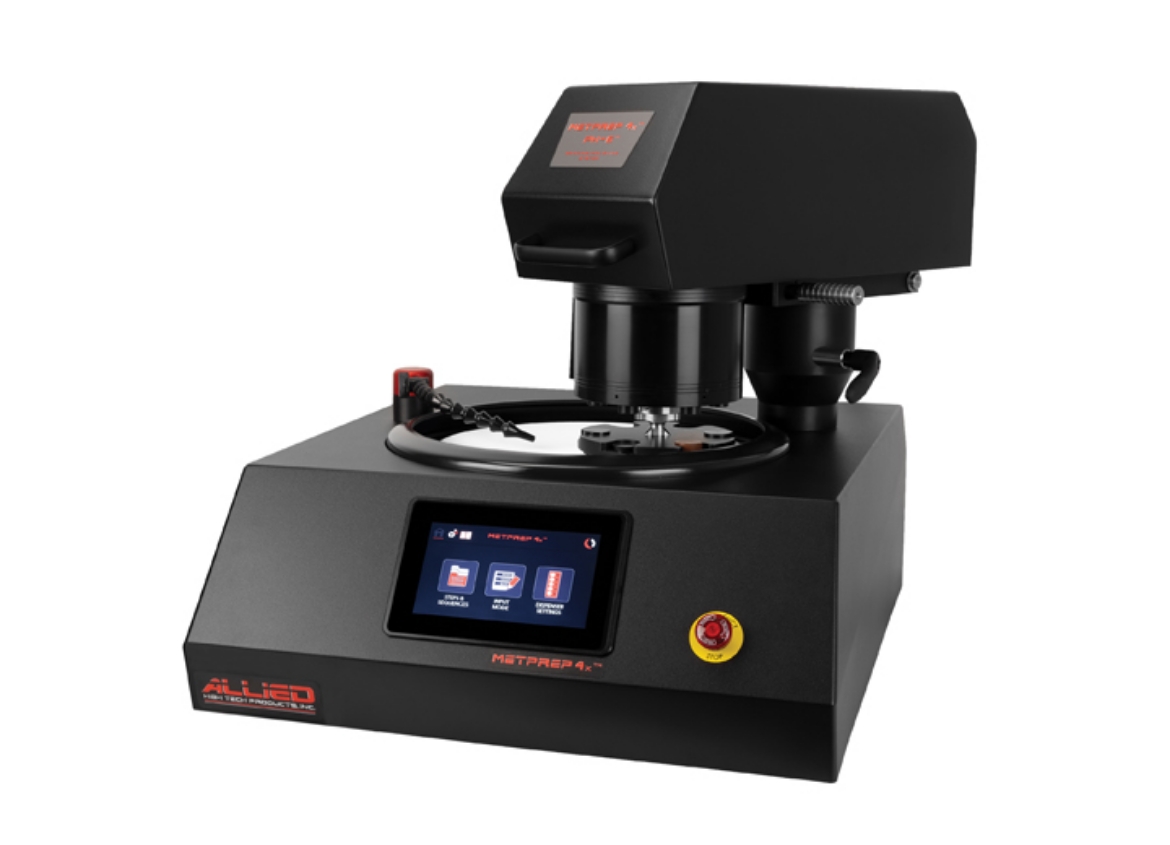

The MetPrep 4x™ grinding and polishing machines, with PH™ power heads, are powerful systems for semiautomatic operation, ideal for low to high volume sample preparation requirements. Two combinations provide ideal solutions that accommodate any lab, application or material. The microprocessor-based system allows the operator to use either the manual Input Mode to enter parameters throughout a procedure, or the user-defined preprogrammed Steps and Sequences Mode to select steps in a sequence as the procedure advances.

Either standard or magnetic 10"/254 mm or 12"/305 mm platens may be used with any adhesive, non-adhesive or magnetic system disc.

Availability:
Please make a selection
Item Number: MetPrep 4x & PH-6

More information

Allied Equipment and Fixtures are Designed and Manufactured by Allied in the U.S.A.


Unique Tilt-up Feature Allows Easy Access to Platen & Holder Intuitive Interface Optimized for Productivity & Function Optional Protective Shield



FEATURES

MetPrep 4x™

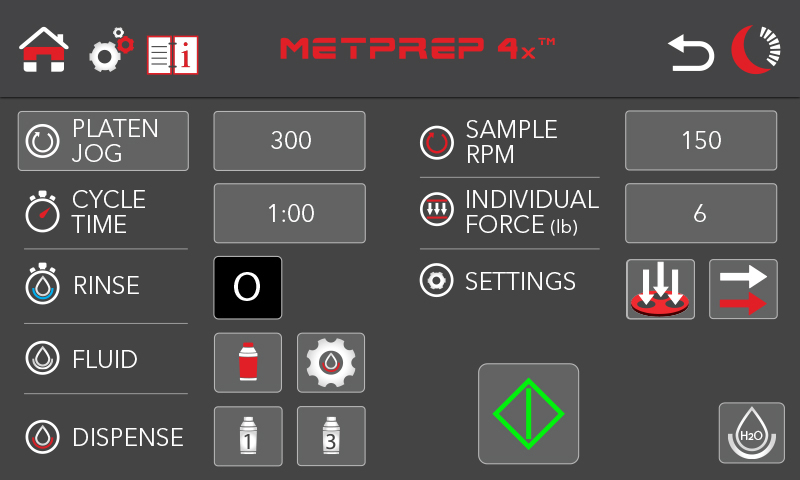

Store and recall of up to ten (10) user-programmable sequences with up to ten (10) individual steps each, including settings for platen speed, force mode, comp/contra rotation (sample holder/platen), cycle time, fluid selection, sample force (lbf or N), sample rotation speed, water rinse, soft start and force reduction   7" (178 mm) color LCD touchscreen with intuitive interface to control all functions, with adjustable units (lbf/N)
Powerful, quiet 2.0 HP (1470 W) Brushless DC motor that provides constant high torque output throughout the speed range   Molded one-piece corrosion resistant cover
Electronic coolant control with adjustable flow control valve   Quick-change platen design, anodized to resist wear and corrosion
Retractable coolant nozzle that allows quick and easy sample/bowl cleaning   Constructed with components precision machined from solid billet aluminum and stainless steel
Built-in programming and seamless integration of optional ID-5x™ fluid dispenser for automatic operation   Variable platen and jog speed: 40 – 600 RPM (10 RPM increments)
Low profile design   Overflow diversion to protect internal components
Emergency shut-off switch   Designed & manufactured by Allied in the USA
Two (2) year warranty



PH-6™ Power Head

Central force sample preparation of up to twelve (12) samples   Soft-start/stop force control
Individual force sample preparation of up to six (6) samples   Simple push-button attachment and removal of sample holders
Unique tilt-up feature for easy access to platen and holder   Safety sensor that stops operation if power head is tilted up
Quick-lock system to allow sample holder positioning across platen radius   Sample holder release button that faces the operator for easy access upon cycle completion
Variable sample rotation speed: 0 – 150 RPM (10 RPM increments) with comp/contra direction control   0.33 HP (246 W) motor with durable reduction gearbox provides constant high torque output
Designed & manufactured by Allied in the USA   Optional protective shield available for added safety

Send us a message
*
*
*
*

Allied Equipment and Fixtures are Designed and Manufactured by Allied in the U.S.A.


Unique Tilt-up Feature Allows Easy Access to Platen & Holder Intuitive Interface Optimized for Productivity & Function Optional Protective Shield



FEATURES

MetPrep 4x™

Store and recall of up to ten (10) user-programmable sequences with up to ten (10) individual steps each, including settings for platen speed, force mode, comp/contra rotation (sample holder/platen), cycle time, fluid selection, sample force (lbf or N), sample rotation speed, water rinse, soft start and force reduction   7" (178 mm) color LCD touchscreen with intuitive interface to control all functions, with adjustable units (lbf/N)
Powerful, quiet 2.0 HP (1470 W) Brushless DC motor that provides constant high torque output throughout the speed range   Molded one-piece corrosion resistant cover
Electronic coolant control with adjustable flow control valve   Quick-change platen design, anodized to resist wear and corrosion
Retractable coolant nozzle that allows quick and easy sample/bowl cleaning   Constructed with components precision machined from solid billet aluminum and stainless steel
Built-in programming and seamless integration of optional ID-5x™ fluid dispenser for automatic operation   Variable platen and jog speed: 40 – 600 RPM (10 RPM increments)
Low profile design   Overflow diversion to protect internal components
Emergency shut-off switch   Designed & manufactured by Allied in the USA
Two (2) year warranty



PH-6™ Power Head

Central force sample preparation of up to twelve (12) samples   Soft-start/stop force control
Individual force sample preparation of up to six (6) samples   Simple push-button attachment and removal of sample holders
Unique tilt-up feature for easy access to platen and holder   Safety sensor that stops operation if power head is tilted up
Quick-lock system to allow sample holder positioning across platen radius   Sample holder release button that faces the operator for easy access upon cycle completion
Variable sample rotation speed: 0 – 150 RPM (10 RPM increments) with comp/contra direction control   0.33 HP (246 W) motor with durable reduction gearbox provides constant high torque output
Designed & manufactured by Allied in the USA   Optional protective shield available for added safety
Product tags
Related products
Parent Grinding and Polishing Fluid Dispenser ID-5x.jpg

ID-5x™

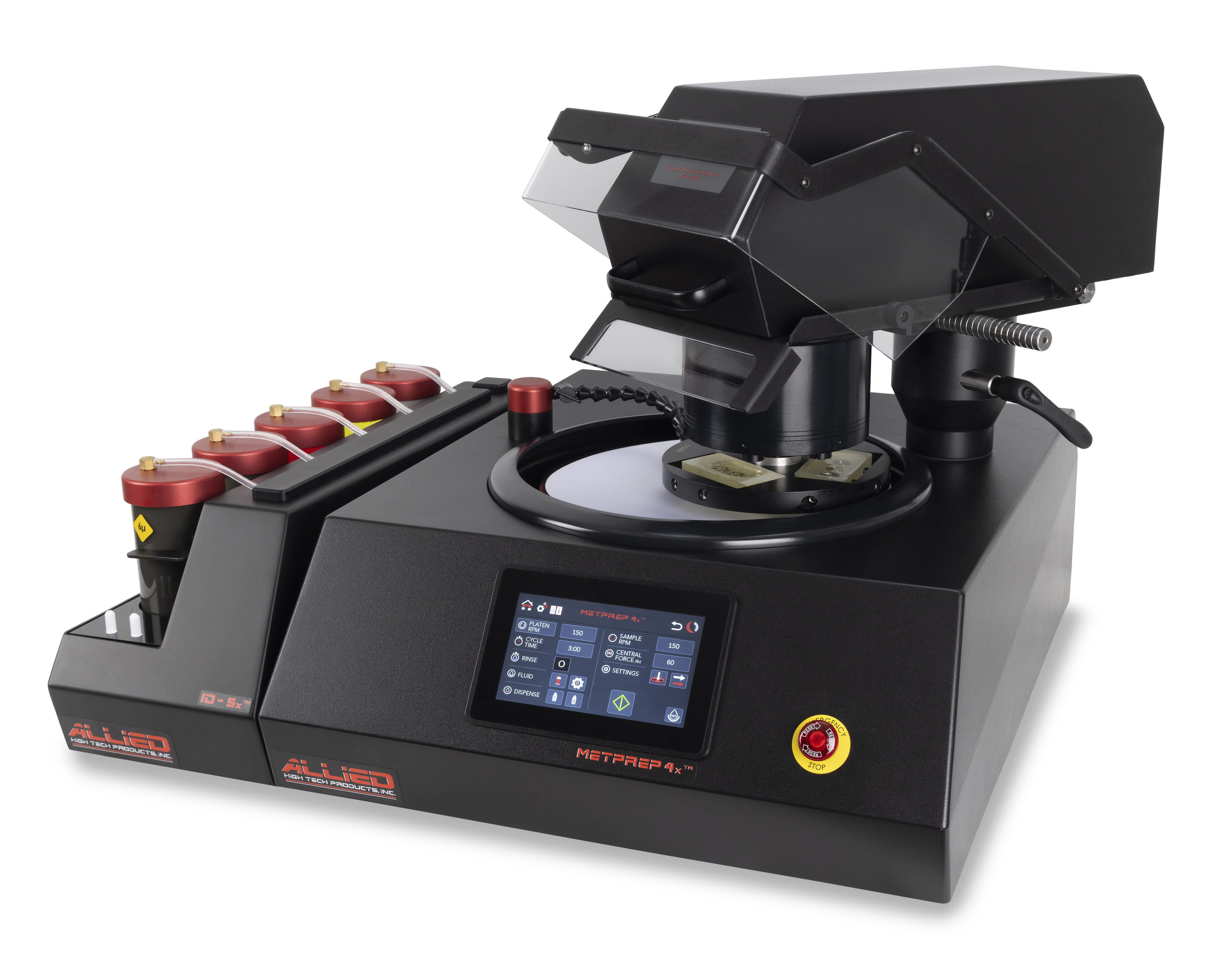

The ID-5x™ fluid dispenser provides automatic, unattended application of abrasive polishing solutions and lubricants. This five (5) position dispenser connects to the back of the MetPrep 3x™ and MetPrep 4x™ grinders/polishers, and is controlled and programmed through the touchscreen. Positions 4 and 5 feature high-speed pumps for dispensing colloidal solutions, and a magnetic stirring function for use with polishing slurries that normally settle.
